In this article, we will see the complete derivation of the Sigmoid function as used in Artificial Intelligence Applications.

To start with, let’s take a look at the sigmoid function

Okay, looks sweet!

We read it as, *the sigmoid of x is 1 over 1 plus the exponential of negative x.*And this is the equation

**(1)**.

Let’s take a look at the graph of the sigmoid function,

Looking at the graph, we can see that the given a number `n`

, the sigmoid function would map that number between **0** and **1**.

As the value of `n`

gets larger, the value of the sigmoid function gets closer and closer to **1 **and as `n`

gets smaller, the value of the sigmoid function is get closer and closer to **0**.

Okay, so let’s start deriving the sigmoid function!

So, we want the value of

In the above step, I just expanded the value formula of the sigmoid function from **(1)**

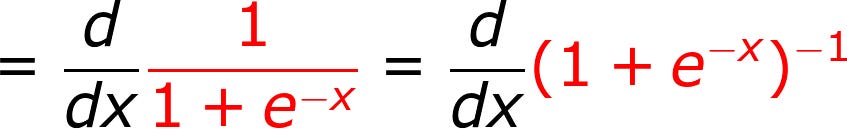

Next, let’s simply express the above equation with *negative exponents*,

Next, we will apply the *reciprocal rule*, which simply says

Applying the reciprocal rule, takes us to the next step

To clearly see what happened in the above step, replace `u(x)`

in the reciprocal rule with `(1 + e^(-x))`

.

Next, we need to apply the *rule of linearity*, which simply says

Applying the rule of linearity, we get

Okay, that was simple, now let’s derive each of them one by one.

Now, *derivative of a constant is 0*, so we can write the next step as

And adding 0 to something doesn’t effects so we will be removing the 0 in the next step and moving with the next derivation for which we will require the *exponential rule*, which simply says

Applying the exponential rule we get,

Again, to better understand you can simply replace `e^u(x)`

in the exponential rule with `e^(-x)`

Next, by the *rule of linearity* we can write

*Derivative of the differentiation variable is 1*, applying which we get

Now, we can simply open the second pair of parenthesis and applying the basic rule `-1 * -1 = +1`

we get

which can be written as

Okay, we are complete with the derivative!!

But but but, we still need to simplify it a bit to get to the form used in Machine Learning. Okay, let’s go!

First, let’s rewrite it as follows

And then rewrite it as

And since `+1 — 1 = 0`

we can do this

And now let’s break the fraction and rewrite it as

Let’s cancel out the numerator and denominator

Now, if we take a look at the first equation of this article **(1)**, then we can rewrite as follows

And with that the simplification is complete!

So, the derivative of the sigmoid function is

And the graph of the derivative of the sigmoid function looks like
