remote sense change detection quick start

first of all, I use the dataset from http://rscup.bjxintong.com.cn/, and the dataset uses 4 input channels, here i just use rgb channels, you can modify it on our own. Okey, Let’s move on.

load needed module

import matplotlib.pyplot as plt
import numpy as np
import os
%matplotlib inline
%load_ext autoreload
%autoreload 2

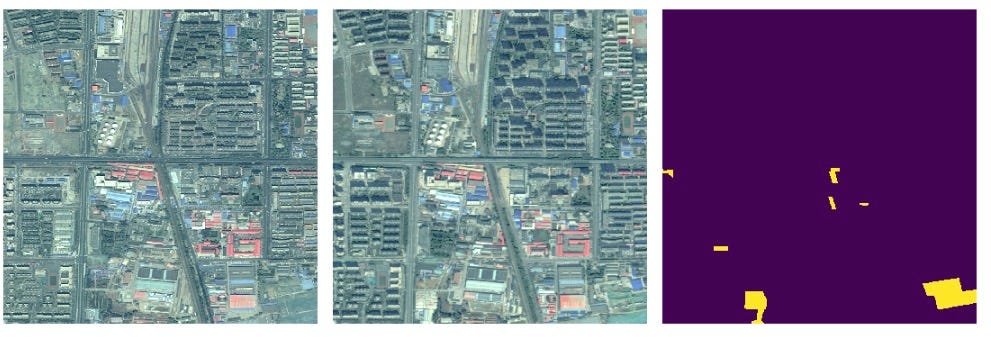

view datasets

from libtiff import TIFF
import matplotlib.pyplot as plt
from skimage.transform import match_histograms
import numpy as np
def normalize(x):
return np.array((x - np.min(x)) / (np.max(x) - np.min(x)))
root = '/home/yons/data/change-detection/rssrai2019_change_detection/train/train'
import glob
from libtiff import TIFF
from skimage.transform import match_histograms
image_path_list_2018 = glob.glob(root+'/img_2018'+'/*.tif')
image_path_list_2018.sort()
image_path_list_2017 = glob.glob(root+'/img_2017'+'/*.tif')
image_path_list_2017.sort()
image_path_list_mask = glob.glob(root+'/mask'+'/*.tif')
image_path_list_mask.sort()
for idx in range(18):

image1 = TIFF.open(image_path_list_2017[idx], mode='r').read_image()[:, :, [2, 1, 0]]
image2 = TIFF.open(image_path_list_2018[idx], mode='r').read_image()[:, :, [2, 1, 0]]
image2 = match_histograms(image2, image1, multichannel=True)
label = TIFF.open(image_path_list_mask[idx], mode='r').read_image()
label = (label / 255).astype(np.uint8)

fig, axes = plt.subplots(1,3, figsize=(15,5))
plt.subplots_adjust(left=0, bottom=0, right=1, top=1, wspace=0.05, hspace=0)
axes[0].imshow(normalize(image1))
axes[0].axis('off')
axes[1].imshow(normalize(image2))
axes[1].axis('off')
axes[2].imshow(label)
axes[2].axis('off')



plt.show()

define network

as we know, in the field, siamese network is very popular, but my experiments in this dataset shows that the raw Unet is better.

import torch
from torch import nn
class double_conv(nn.Module):
def __init__(self, in_ch, out_ch):
super(double_conv, self).__init__()
self.conv = nn.Sequential(
nn.Conv2d(in_ch, out_ch, 3, padding=1),
nn.BatchNorm2d(out_ch),
nn.ReLU(inplace=True),
nn.Conv2d(out_ch, out_ch, 3, padding=1),
nn.BatchNorm2d(out_ch),
nn.ReLU(inplace=True)
)
def forward(self, x):
x = self.conv(x)
return x
class up(nn.Module):
def __init__(self, in_ch, out_ch, bilinear=True):
super(up, self).__init__()
self.conv = double_conv(in_ch, out_ch)
def forward(self, x1, x2):
x1 = nn.functional.interpolate(x1, scale_factor=2)
x = torch.cat([x2, x1], dim=1)
x = self.conv(x)
return x
class UNet(nn.Module):
def __init__(self, n_channels, n_classes):
super(UNet, self).__init__()
self.inc = double_conv(n_channels, 64)
self.down1 = nn.Sequential(nn.MaxPool2d(2), double_conv(64, 128))
self.down2 = nn.Sequential(nn.MaxPool2d(2), double_conv(128, 256))
self.down3 = nn.Sequential(nn.MaxPool2d(2), double_conv(256, 512))
self.down4 = nn.Sequential(nn.MaxPool2d(2), double_conv(512, 512))
self.up1 = up(1024, 256)
self.up2 = up(512, 128)
self.up3 = up(256, 64)
self.up4 = up(128, 64)
self.outc = nn.Conv2d(64, n_classes, 1)
def forward(self, x1, x2):
x = torch.cat([x1, x2], dim=1)
x1 = self.inc(x)
x2 = self.down1(x1)
x3 = self.down2(x2)
x4 = self.down3(x3)
x5 = self.down4(x4)
x = self.up1(x5, x4)
x = self.up2(x, x3)
x = self.up3(x, x2)
x = self.up4(x, x1)
x = self.outc(x)
return x
from torchsummary import summary
net = UNet(6,2)
summary(net, input_size=[(3, 960, 960), (3, 960, 960)], batch_size=1, device='cpu')

define loader

import itertools
import glob
from libtiff import TIFF
import numpy as np
from torch.utils.data import Dataset
from skimage.transform import match_histograms
import torch
class SctDataset(Dataset):
def __init__(self, root, size=512, slide=256):
image_path_list_2018 = glob.glob(root + '/img_2018' + '/*.tif')
image_path_list_2018.sort()
image_path_list_2017 = glob.glob(root + '/img_2017' + '/*.tif')
image_path_list_2017.sort()
image_path_list_mask = glob.glob(root + '/mask' + '/*.tif')
image_path_list_mask.sort()
self.image_path_list_2018 = image_path_list_2018
self.image_path_list_2017 = image_path_list_2017
self.image_path_list_mask = image_path_list_mask
def __getitem__(self, idx):image1 = TIFF.open(self.image_path_list_2017[idx], mode='r').read_image()[:, :, [2, 1, 0]].transpose((2, 0, 1))
image2 = TIFF.open(self.image_path_list_2018[idx], mode='r').read_image()[:, :, [2, 1, 0]].transpose((2, 0, 1))
image2 = match_histograms(image2, image1, multichannel=True)
label = TIFF.open(self.image_path_list_mask[idx], mode='r').read_image()
label = (label / 255).astype(np.uint8)
return torch.from_numpy(image1.astype(np.float32)), torch.from_numpy(image2.astype(np.float32)), torch.from_numpy(label).long()def __len__(self):
return len(self.image_path_list_2018)
from torch.utils.data import DataLoader
test_loader = DataLoader(SctDataset('/home/yons/data/change-detection/rssrai2019_change_detection/train/train'), batch_size=1, shuffle=True, num_workers=1)
test_iter = iter(test_loader)
x1, x2, target = next(test_iter)
print(x1.shape,x2.shape,target.shape)

we got

torch.Size([1, 3, 960, 960]) torch.Size([1, 3, 960, 960]) torch.Size([1, 960, 960])

define criterion

in my experiment, the classical cross entropy loss is shockly bad. And the parameter of the TverskyLoss is needed to be trend carefully. 0.3 and 0.7 is the best in my experiment.

import torch
import torch.nn as nn
import torch.nn.functional as F
class TverskyLoss(nn.Module):
def __init__(self, alpha=0.5, beta=0.5, eps=1e-7, size_average=True):
super(TverskyLoss, self).__init__()
self.alpha = alpha
self.beta = beta
self.size_average = size_average
self.eps = eps
def forward(self, logits, true):
"""Computes the Tversky loss [1].
Args:
true: a tensor of shape [B, H, W] or [B, 1, H, W].
logits: a tensor of shape [B, C, H, W]. Corresponds to
the raw output or logits of the model.
alpha: controls the penalty for false positives.
beta: controls the penalty for false negatives.
eps: added to the denominator for numerical stability.
Returns:
tversky_loss: the Tversky loss.
Notes:
alpha = beta = 0.5 => dice coeff
alpha = beta = 1 => tanimoto coeff
alpha + beta = 1 => F beta coeff
References:
[1]: https://arxiv.org/abs/1706.05721
"""
num_classes = logits.shape[1]
if num_classes == 1:
true_1_hot = torch.eye(num_classes + 1)[true.squeeze(1)]
true_1_hot = true_1_hot.permute(0, 3, 1, 2).float()
true_1_hot_f = true_1_hot[:, 0:1, :, :]
true_1_hot_s = true_1_hot[:, 1:2, :, :]
true_1_hot = torch.cat([true_1_hot_s, true_1_hot_f], dim=1)
pos_prob = torch.sigmoid(logits)
neg_prob = 1 - pos_prob
probas = torch.cat([pos_prob, neg_prob], dim=1)
else:
true_1_hot = torch.eye(num_classes)[true.squeeze(1)]
true_1_hot = true_1_hot.permute(0, 3, 1, 2).float()
probas = F.softmax(logits, dim=1)
true_1_hot = true_1_hot.type(logits.type())
dims = (0,) + tuple(range(2, true.ndimension()))
intersection = torch.sum(probas * true_1_hot, dims)
fps = torch.sum(probas * (1 - true_1_hot), dims)
fns = torch.sum((1 - probas) * true_1_hot, dims)
num = intersection
denom = intersection + (self.alpha * fps) + (self.beta * fns)
tversky_loss = (num / (denom + self.eps)).mean()
return (1 - tversky_loss)
criterion = TverskyLoss(alpha=0.3, beta=0.7)
y = net(x1,x2)
loss = criterion(y, target)
print(loss.item())

train

from tqdm import tqdm_notebook as tqdm
import torch
train_loader = DataLoader(SctDataset('/home/yons/data/change-detection/rssrai2019_change_detection/train/train'), batch_size=1, shuffle=True, num_workers=1)
val_loader = DataLoader(SctDataset('/home/yons/data/change-detection/rssrai2019_change_detection/val/val'), batch_size=1, shuffle=True, num_workers=1)
print('train: ', len(train_loader))
print('val: ', len(val_loader))
best_loss = 9999save_dir = '/home/yons/workplace/python/change-detection/log/0.4'
import shutil, os
if not os.path.exists(save_dir):
os.makedirs(save_dir)
else:
shutil.rmtree(save_dir)
os.makedirs(save_dir)

net = UNet(6, 2)
net = net.cuda()
optimizer = torch.optim.SGD(net.parameters(), lr=0.01, momentum=0.9, weight_decay=0.0005)
scheduler = torch.optim.lr_scheduler.MultiStepLR(optimizer, milestones=[3, 8, 15], gamma=0.1)
for epoch in range(20):
net.train()
train_loss = 0
for step, data in tqdm(enumerate(train_loader)):
x1, x2, target = data
x1, x2, target = x1.cuda(), x2.cuda(), target.cuda()
optimizer.zero_grad()
y = net(x1, x2)
loss = criterion(y, target)
loss.backward()
optimizer.step()
train_loss = train_loss + loss.item()
train_loss = train_loss / len(train_loader)
net.eval()
with torch.no_grad():
val_loss = 0
for step, data in tqdm(enumerate(val_loader)):
x1, x2, target = data
x1, x2, target = x1.cuda(), x2.cuda(), target.cuda()
y = net(x1, x2)
loss = criterion(y, target)
val_loss = val_loss + loss.item()
val_loss = val_loss / len(val_loader)
print(epoch, train_loss, val_loss)
if val_loss < best_loss:
best_loss = val_loss
save_path = os.path.join(save_dir, 'best_loss.pth')
state = {
'net': net.state_dict(),
'epoch': epoch,
'loss': best_loss
}
torch.save(state, save_path)
scheduler.step()

evaluate

net = UNet(6, 2)
net = net.cuda()
checkpoint = torch.load('/home/yons/workplace/python/change-detection/log/0.4/best_loss.pth')
net.load_state_dict(checkpoint['net'])
print(checkpoint['loss'], checkpoint['epoch'])

vis

def normalize(x):
return np.array((x - np.min(x)) / (np.max(x) - np.min(x)))
net.eval()
with torch.no_grad():
val_loss = 0
for step, data in tqdm(enumerate(val_loader)):
x1, x2, target = data
x1, x2, target = x1.cuda(), x2.cuda(), target.cuda()
y = net(x1, x2)
loss = criterion(y, target)
val_loss = val_loss + loss.item()

x1 = x1.cpu().numpy()[0].transpose((1,2,0))
x2 = x2.cpu().numpy()[0].transpose((1,2,0))
_, y = torch.max(y, 1)
y = y.cpu().numpy()[0]
target = target.cpu().numpy()[0]

fig, axes = plt.subplots(1,4, figsize=(8,2))
plt.subplots_adjust(left=0, bottom=0, right=1, top=1, wspace=0.1, hspace=0.1)

image1 = TIFF.open(image_path_list_2017[step], mode='r').read_image()[:,:,[2,1,0]]
image2 = TIFF.open(image_path_list_2018[step], mode='r').read_image()[:,:,[2,1,0]]
image2 = match_histograms(image2, image1, multichannel=True)
axes[0].imshow(normalize(image1))
axes[0].axis('off')
axes[1].imshow(normalize(image2))
axes[1].axis('off')
axes[2].imshow(target)
axes[2].axis('off')
axes[3].imshow(y)
axes[3].axis('off')

plt.show()
val_loss = val_loss / len(val_loader)
print(val_loss)

bingo!. the code is available in https://github.com/CarryHJR/remote-sense-quickstart. if you think this post help you, please give me a stat, thank you very much.
