Scene Classification Quick Start and beat the official baseline

Okey, in the field of scene classification, the classical dataset is AID dataset which have 10000 images and 30 categories, the official baseline is 89%(50% data used as trainset)let us kill the AID dataset.

load module

import matplotlib.pyplot as plt
%matplotlib inline
import numpy as np
import os
from IPython.core.interactiveshell import InteractiveShell
InteractiveShell.ast_node_interactivity = "all"
%load_ext autoreload
%autoreload 2

load dataset

we define the dataset and get the dict to define the id-name map.

data_dir = '/home/yons/data/AID/AID'
import glob
image_path_list = glob.glob(os.path.join(data_dir, '*', '*'))
image_path_list.sort()
print(len(image_path_list))
categories = [d.name for d in os.scandir(data_dir) if d.is_dir()]
categories.sort()
print(len(categories))
class_to_idx = {categories[i]: i for i in range(len(categories))}
idx_to_class = {idx: class_ for class_, idx in class_to_idx.items()}
print(class_to_idx)

we got

{'Airport': 0, 'BareLand': 1, 'BaseballField': 2, 'Beach': 3, 'Bridge': 4, 'Center': 5, 'Church': 6, 'Commercial': 7, 'DenseResidential': 8, 'Desert': 9, 'Farmland': 10, 'Forest': 11, 'Industrial': 12, 'Meadow': 13, 'MediumResidential': 14, 'Mountain': 15, 'Park': 16, 'Parking': 17, 'Playground': 18, 'Pond': 19, 'Port': 20, 'RailwayStation': 21, 'Resort': 22, 'River': 23, 'School': 24, 'SparseResidential': 25, 'Square': 26, 'Stadium': 27, 'StorageTanks': 28, 'Viaduct': 29}

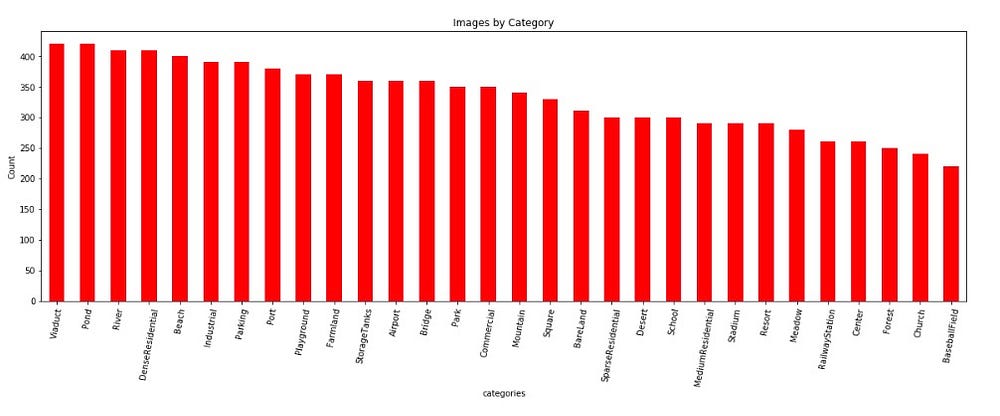

view numbers

we wanna see the numbers distribution

n_categories = []
for category in categories:
n_categories.append(len(os.listdir(os.path.join(data_dir, category))))
print(n_categories)
import pandas as pd
cat_df = pd.DataFrame({'categories':categories, 'number':n_categories})
cat_df.sort_values('number', ascending=False, inplace=True)
cat_df.head()
cat_df.tail()
_ = plt.figure()
cat_df.set_index('categories')['number'].plot.bar(color='r', figsize=(20, 6))
_ = plt.xticks(rotation=80)
_ = plt.ylabel('Count')
_ = plt.title('Images by Category')

view heights and widths

import cv2
def multiprocess_run(process, obj_list, notebook=False):
if notebook is True:
from tqdm import tqdm_notebook as tqdm
else:
from tqdm import tqdm
from multiprocessing import Pool
import multiprocessing
import time
import sys
cpus = multiprocessing.cpu_count()
pool = Pool(processes=cpus)
result_list = []
tic = time.time()
for result in tqdm(pool.imap(process, obj_list)):
result_list.append(result)
sys.stdout.flush()
toc = time.time()
print('time waste', toc - tic)
return result_list
def process(image_path):
category = os.path.dirname(image_path).split('/')[-1]
try:
h, w, _ = cv2.imread(image_path).shape
except Exception as e:
print(image_path)
return None
return {'category':category, 'height':h, 'width': w}
result_list = multiprocess_run(process, image_path_list, notebook=True)img_category_list = []
img_height_list = []
img_width_list = []
for d in result_list:
if d is not None:
img_category_list.append(d['category'])
img_height_list.append(d['height'])
img_width_list.append(d['width'])

image_df = pd.DataFrame({
'category': img_category_list,
'height': img_height_list,
'width': img_width_list
})
import seaborn as sns
img_dsc = image_df.groupby('category').describe()
img_dsc
## all of the dataset are 600*600

split datasets

the aid official baseline: 20% — 86.86 | 50% — 89.53

we just conduct experiments using 50% as trainset, 50% as the valset

import random
random.shuffle(image_path_list)
image_path_list_train = image_path_list[:5000]
image_path_list_val = image_path_list[5000:]
print('train:', len(image_path_list_train))
print('val:', len(image_path_list_val))

define datasets

from torch.utils.data import Dataset
from PIL import Image
class SceneDataset(Dataset):def __init__(self, samples, transform, notebook=False):
self.transform = transform
self.samples = samples
self.get_item = self.get_item_from_path
print(len(self.samples))
def get_item_from_path(self, index):
path, target = self.samples[index]
with open(path, 'rb') as f:
img = Image.open(f).convert('RGB')
return img, target
def __getitem__(self, index):
sample, target = self.get_item(index)
sample = self.transform(sample)
return sample, target
def __len__(self):
return len(self.samples)


# test
from torchvision import datasets, transforms
from torch.utils.data import DataLoader
transform = transforms.Compose([transforms.Resize(224),
transforms.ToTensor()])
batch_size = 128
data = {
'train':
SceneDataset([(x, class_to_idx[x.split('/')[-2]]) for x in image_path_list_train], transform=transform),
'val':
SceneDataset([(x, class_to_idx[x.split('/')[-2]]) for x in image_path_list_val], transform=transform),
}
dataloaders = {
'train': DataLoader(data['train'], batch_size=batch_size, shuffle=False),
'val': DataLoader(data['val'], batch_size=batch_size, shuffle=False),
}
test_iter = iter(dataloaders['train'])
inputs, targets = next(test_iter)
inputs.shape, targets.shape

we got

(torch.Size([128, 3, 224, 224]), torch.Size([128]))

vis

plt.figure(figsize=(16, 16))
plt.subplots_adjust(left=0, bottom=0, right=1, top=1, wspace=0, hspace=0)
for i in range(64):
ax = plt.subplot(8, 8, i + 1)
image = inputs[i]
image = image.numpy().transpose((1, 2, 0))
image = np.clip(image, 0, 1)
label = idx_to_class[targets[i].item()]
_ = ax.imshow(image)
_ = ax.text(50, 25, str(label), bbox=dict(facecolor='red', alpha=0.5))
_ = ax.axis('off')

cat the mean and the std

import torch
from torchvision import datasets, transforms
from torch.utils.data import DataLoader
transform = transforms.Compose([transforms.Resize(224),
transforms.ToTensor()])
dataset = SceneDataset(samples=[(x, class_to_idx[x.split('/')[-2]]) for x in image_path_list_train], transform=transform)loader = DataLoader(
dataset,
batch_size=128,
num_workers=32,
shuffle=False
)
print(len(loader))mean = 0.
std = 0.
nb_samples = 0.
from tqdm import tqdm_notebook as tqdm
for step, data in tqdm(enumerate(loader)):
inputs, targets = data
batch_samples = inputs.size(0)
inputs = inputs.view(batch_samples, inputs.size(1), -1)
mean += inputs.mean(2).sum(0)
std += inputs.std(2).sum(0)
nb_samples += batch_samples
mean /= nb_samples
std /= nb_samples
mean = mean.numpy()
std = std.numpy()
print(mean)
print(std)

we got

[0.3993387 0.4099782 0.36849037]
[0.14586602 0.1325128 0.12770559]

define transfrom

from torchvision import transforms
# Image transformations
image_transforms = {
# Train uses data augmentation
'train':
transforms.Compose([
transforms.RandomResizedCrop(size=224, scale=(0.8, 1.0)),
transforms.RandomRotation(degrees=15),
transforms.ColorJitter(),
transforms.RandomHorizontalFlip(),
transforms.ToTensor(),
transforms.Normalize(mean, std) # Imagenet standards
]),
# Validation does not use augmentation
'val':
transforms.Compose([
transforms.Resize(size=256),
transforms.ToTensor(),
transforms.Normalize(mean, std)
])
}

vis

from torchvision import datasets
from torch.utils.data import DataLoader
batch_size = 128data = {
'train':
SceneDataset([(x, class_to_idx[x.split('/')[-2]]) for x in image_path_list_train], transform=image_transforms['train']),
'val':
SceneDataset([(x, class_to_idx[x.split('/')[-2]]) for x in image_path_list_val], transform=image_transforms['val']),
}
dataloaders = {
'train': DataLoader(data['train'], batch_size=batch_size, shuffle=False),
'val': DataLoader(data['val'], batch_size=batch_size, shuffle=False),
}
test_iter = iter(dataloaders['train'])
inputs, targets = next(test_iter)
inputs.shape, targets.shape
plt.figure(figsize=(16, 16))
plt.subplots_adjust(left=0, bottom=0, right=1, top=1, wspace=0, hspace=0)
for i in range(64):
ax = plt.subplot(8, 8, i + 1)
image = inputs[i]
image = image.numpy().transpose((1, 2, 0))
image = np.array(std) * image + np.array(mean)

image = np.clip(image, 0, 1)
label = idx_to_class[targets[i].item()]
_ = ax.imshow(image)
_ = ax.text(50, 25, str(label), bbox=dict(facecolor='red', alpha=0.5))
_ = ax.axis('off')

define model

here we use resnext50

import torchvision
import torch.nn as nn
model = torchvision.models.resnext50_32x4d(pretrained=True)
for i, layer in enumerate(model.children()):
if i < 6:
for param in layer.parameters():
param.requires_grad = False
n_inputs = model.fc.in_features
model.fc = nn.Sequential(
nn.Linear(n_inputs, 256), nn.ReLU(), nn.Dropout(0.3),
nn.Linear(256, 30))

see the summary

from torchsummary import summary
summary(model, input_size=(3, 224, 224), batch_size=1, device='cpu')

train

we need the function to simply the code

def train_val(net, criterion, optimizer, train_loader, val_loader):
from tqdm.autonotebook import tqdm
_ = net.train()
train_loss = 0
train_acc = 0
for step, (inputs, targets) in tqdm(enumerate(train_loader)):
inputs, targets = inputs.cuda(), targets.cuda()
outputs = net(inputs)
optimizer.zero_grad()
loss = criterion(outputs, targets)
loss.backward()
optimizer.step()
train_loss += loss.item()
_, pred = torch.max(outputs, dim=1)
correct_tensor = pred.eq(targets.data.view_as(pred))
accuracy = torch.mean(correct_tensor.type(torch.FloatTensor))
train_acc += accuracy.item()
train_loss, train_acc = train_loss / len(train_loader), train_acc / len(train_loader)
_ = net.eval()
with torch.no_grad():
val_loss = 0
val_acc = 0
for step, (inputs, targets) in enumerate(val_loader):
inputs, targets = inputs.cuda(), targets.cuda()
outputs = net(inputs)
loss = criterion(outputs, targets)
val_loss += loss.item()
_, pred = torch.max(outputs, dim=1)
correct_tensor = pred.eq(targets.data.view_as(pred))
accuracy = torch.mean(correct_tensor.type(torch.FloatTensor))
val_acc += accuracy.item()
val_loss, val_acc = val_loss / len(val_loader), val_acc / len(val_loader)
return train_loss, train_acc, val_loss, val_acc
def get_lr(optimizer):
for param_group in optimizer.param_groups:
return param_group['lr']

train

batch_size = 128
dataloaders = {
'train': DataLoader(data['train'], batch_size=batch_size, shuffle=True),
'val': DataLoader(data['val'], batch_size=batch_size, shuffle=False),
}
print('train batch:%s' % len(dataloaders['train']))
print('val batch:%s' % len(dataloaders['val']))
# loss
criterion = nn.CrossEntropyLoss()
import torch
net = model.cuda()
net = nn.DataParallel(net)
optimizer = torch.optim.SGD(net.parameters(), lr=0.01, momentum=0.9, weight_decay=0.0005)
scheduler = torch.optim.lr_scheduler.MultiStepLR(optimizer, milestones=[2, 8, 15, 20], gamma=0.1)
version = '0.1'
log_dir = 'AID-quickstart.log'
save_dir = os.path.join(log_dir, version)
import shutil
import os
if not os.path.exists(save_dir):
os.makedirs(save_dir)
else:
shutil.rmtree(save_dir)
os.makedirs(save_dir)
best_acc = 0
for epoch in range(25):
scheduler.step()
print('\n Version: %s Epoch: %d | learning rate:%f' % (version, epoch, get_lr(optimizer)))
train_loss, train_acc, val_loss, val_acc = train_val(net, criterion, optimizer, dataloaders['train'], dataloaders['val'])
print(epoch, train_loss, train_acc, val_loss, val_acc)
if val_acc > best_acc:
best_acc = val_acc
save_path = os.path.join(save_dir, 'best_acc.pth')
state = {
'net': net.state_dict(),
'epoch': epoch,
'loss': val_loss,
'acc': val_acc
}
torch.save(state, save_path)

okey, the core part is finished. Let’s move on to evaluate

evaluate

save_path = os.path.join(save_dir, 'best_acc.pth')
checkpoint = torch.load(save_path)
net.load_state_dict(checkpoint['net'])
print(checkpoint['epoch'], checkpoint['loss'], checkpoint['acc'])

we got

13 0.3272677581757307 0.92421875

bingo, we have beated the official baseline

for the next analysis, we need to calculate the probs array.

import torch.nn.functional as F
_ = net.eval()
predict_prob_list_val = []
target_list_val = []
with torch.no_grad():
val_loss = 0
val_acc = 0
for step, (inputs, targets) in tqdm(enumerate(dataloaders['val'])):
inputs, targets = inputs.cuda(), targets.cuda()
outputs = net(inputs)
loss = criterion(outputs, targets)
val_loss += loss.item()
_, pred = torch.max(outputs, dim=1)
correct_tensor = pred.eq(targets.data.view_as(pred))
accuracy = torch.mean(correct_tensor.type(torch.FloatTensor))
val_acc += accuracy.item()
# 计算probs备用
probs = torch.exp(F.log_softmax(outputs, dim=1)).cpu().numpy()
predict_prob_list_val.append(probs)
targets = targets.cpu().numpy()
target_list_val.append(targets)
val_loss, val_acc = val_loss / len(dataloaders['val']), val_acc / len(dataloaders['val'])
print(val_loss, val_acc)
predict_prob_npy = np.array(predict_prob_list_val)
predict_prob_npy = np.concatenate(predict_prob_npy, 0)
target_npy_val = np.array(target_list_val)
target_npy_val = np.concatenate(target_npy_val, 0)
from sklearn.metrics import accuracy_score
accuracy_score(target_npy_val, np.argmax(predict_prob_npy, 1))

view top1 and top5 acc

import pandas as pd
topk = 2
tmp = np.equal(np.argsort(predict_prob_npy, axis=1)[:,-topk:][:, ::-1], np.tile(target_npy_val.reshape((-1,1)), (1,topk)))
a = np.sum(tmp[:,(0,)], axis=1).reshape((-1,1))
b = np.sum(tmp, axis=1).reshape((-1,1))
acc_results = np.hstack((a,b)) * 100
print('top1 : ', np.sum(a) / predict_prob_npy.shape[0])
print('top5 : ', np.sum(b) / predict_prob_npy.shape[0])
classes = [idx_to_class[x] for x in target_npy_val]
results = pd.DataFrame(acc_results, columns=['top1', 'top5'])
results['class'] = classes
results = results.groupby(classes).mean().reset_index().rename(columns={'index': 'class'})
import seaborn as sns
results = results.merge(cat_df, left_on='class', right_on='categories').drop(columns=['categories'])
fig, axes = plt.subplots(1,2, figsize=(16,8))
ax = axes[0]
_ = sns.regplot(
y='top1', x='number', data=results, ax=ax)
_ = ax.set_xlabel('images')
_ = ax.set_ylabel('Accuracy (%)')
_ = ax.set_title('Top 1 Accuracy vs Number of Training Images')
_ = ax.set_ylim(-5, 105)
ax = axes[1]
_ = sns.regplot(
y='top5', x='number', data=results, ax=ax)
_ = ax.set_xlabel('images')
_ = ax.set_ylabel('Accuracy (%)')
_ = ax.set_title('Top 5 Accuracy vs Number of Training Images')
_ = ax.set_ylim(-5, 105)

we got

top1 : 0.9224
top5 : 0.9694

good, top5 is really high, the core problem is the confusion class.

Let’s see the acc distribution by the numbers

_ = plt.subplot(211)
results.set_index('class')['number'].plot.bar(
color='r', figsize=(20, 6))
_ = plt.xticks(rotation=80)
_ = plt.ylabel('Count')
_ = plt.title('Number Images by Category')
_ = plt.subplot(212)
results.set_index('class')['top1'].plot.bar(
color='r', figsize=(20, 6))
_ = plt.xticks(rotation=80)
_ = plt.ylabel('acc')
_ = plt.title('Acc by Category')
_ = plt.hlines(85, 0, 100, colors = "b", linestyles = "dashed")
_ = plt.hlines(90, 0, 100, colors = "g", linestyles = "dashed")

yeah, some categories dont work well.

Let’s plot the confusion matrix to the reason behind the plot

plot confusion matrix

def plot_confusion_matrix(y_true, y_pred, classes,
normalize=False,
title=None,
cmap=None, figsize=(20, 20)):
import matplotlib.pyplot as plt
cmap = plt.cm.Blues
from sklearn.metrics import confusion_matrix
from sklearn.utils.multiclass import unique_labels
import matplotlib.pyplot as plt
import numpy as np
"""
This function prints and plots the confusion matrix.
Normalization can be applied by setting `normalize=True`.
"""
if not title:
if normalize:
title = 'Normalized confusion matrix'
else:
title = 'Confusion matrix, without normalization'
# Compute confusion matrix
cm = confusion_matrix(y_true, y_pred)
# Only use the labels that appear in the data
classes = classes[unique_labels(y_true, y_pred)]
if normalize:
cm = cm.astype('float') / cm.sum(axis=1)[:, np.newaxis]
print("Normalized confusion matrix")
else:
print('Confusion matrix, without normalization')
fig = plt.figure(figsize=figsize)
ax = fig.add_subplot(111)
im = ax.imshow(cm, interpolation='nearest', cmap=cmap)
ax.figure.colorbar(im, ax=ax, fraction=0.046, pad=0.04)
# We want to show all ticks...
ax.set(xticks=np.arange(cm.shape[1]),
yticks=np.arange(cm.shape[0]),
# ... and label them with the respective list entries
xticklabels=classes, yticklabels=classes,
title=title,
ylabel='True label',
xlabel='Predicted label')
# Rotate the tick labels and set their alignment.
plt.setp(ax.get_xticklabels(), rotation=45, ha="right",
rotation_mode="anchor")
# Loop over data dimensions and create text annotations.
fmt = '.2f' if normalize else 'd'
thresh = cm.max() / 2.
for i in range(cm.shape[0]):
for j in range(cm.shape[1]):
ax.text(j, i, format(cm[i, j], fmt),
ha="center", va="center",
color="white" if cm[i, j] > thresh else "black")
fig.tight_layout()
return ax
classes = [d.name for d in os.scandir(data_dir) if d.is_dir()]
classes.sort()
classes = np.array(classes)
plot_confusion_matrix(target_npy_val, np.argmax(predict_prob_npy, 1), classes, normalize=True,
title='confusion matrix', cmap=plt.cm.Blues)

bingo, enjoy yourself, the code is avaiable in https://github.com/carryHJR/remote-sense-quickstart, if this posts helps you, please give me a star, thank you very much.
